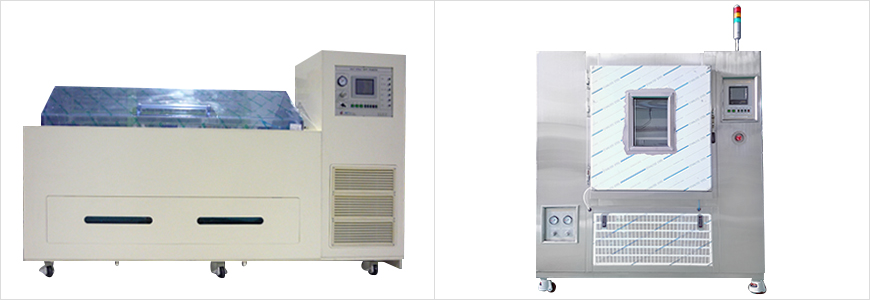

복합부식시험기
CYCLIC CORROSION TEST CHAMBER
| Model | SJ-CCT-P720 | SJ-CCT-C150 | SJ-CCT-C384 | SJ-CCT-C768 | |
|---|---|---|---|---|---|
| Dimension (W×D×H)mm |
Internal | 1500x800x600 | 500x500x600 | 800x600x800 | 800x800x1200 |
| External | 2610x1030x1500 | 1470x1060x1680 | 1770x1260x1900 | 1720x1880x2450 | |
| Temp. range | RT ∼ 50℃ | RT ∼ 70℃ | |||
| Saturation tank temp. range | WT ∼ 60℃ | ||||
| Temp. accuracy | ± 1℃ | ||||
| Spray quantity | 1 ∼ 15. ㎕/h | ||||
| Controller | Digital display P.I.D action controller | ||||
| Test method | Salt spray | RT ∼ 35℃ | |||
| Dry | RT ∼ 70℃ | ||||
| Humi. | (at 50℃) 60 ∼ 95％ RH | ||||
| Heater | Dry | 1250W | 1400W | 3450W | 3300W |
| Wet | 3000W | 1800W | 2000W | 2400W | |
| St.tank | 800W | 700W | 700W | 700W | |
| Material | Interior | Polypropylene plate 10T | SUS 316 polishing plate | ||
| Exterior | P.V.C plate 10T | SUS 316 hairline plate | |||
| Insulation | Poly carbonate 10T | SUS 316 hairline plate | |||
| Air pressure | Regulator capacity 0∼5mpa / test pressure 0.07∼1.8mpa | ||||
| Refrigeration system | Air cooled or water cooled condenser system (single stage or double stage refrigerator) | ||||
| Power source | AC 220V 1Ø 50∼60Hz / AC 380V 3Ø 50∼60Hz (AC 220V 3Ø 50∼60Hz) | ||||
| Product weight (kg) | 200 | 250 | 400 | 600 | |
| Safety devices |
|
||||
| Accessories |
|
||||
