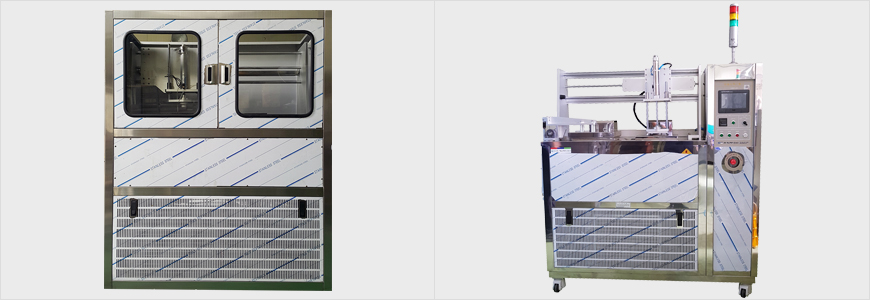

액조-열충격시험기
THERMAL SHOCK TEST BATH
| Model | SJ-TS-B12 | SJ-TS-B22 | SJ-TS-B27 | SJ-TS-B34 | |
|---|---|---|---|---|---|
| Dimension (W×D×H)mm |
Bssket(test zone) | 100x100x130 | 120x150x120 | 150x120x150 | 150x150x150 |
| Internal bath | 200x200x300 | 250x300x250 | 300x270x300 | 300x300x300 | |
| External | 1100x600x950 | 1340x910x1770 | 1450x910x1800 | 1450x980x1800 | |
| Test zone capacity | 13 Liter | 22 Liter | 27 Liter | 34 Liter | |
| Temp. range | -40℃∼150℃ / -50℃∼150℃ / -60℃∼150℃ / -70℃∼150℃ / -50℃∼200℃ | ||||
| Test method | Basket high temp. ↔ low temp. moving system | ||||
| 2 Zone left - right switching system (high temp. ↔ low temp.) | |||||
| Controller | Touch screen LCD program type or digital display P.I.D action type | ||||
| Recorder (option) | 100mm chart 1Pen type / free control speed (year, month, date, time) | ||||
| Temp. recovery time | Within 5min | ||||
| Heater | Material | SUS 316 pipe sheath heater | |||
| Material | Interior | SUS 304 polishing plate | |||
| Exterior | SUS 304 hairline plate or SS41 steel plate color powder coating | ||||
| Insulation | Poly urethane form & glass wool | ||||
| Refrigeration system | Air cooled or water cooled condenser system (double stage refrigerator) | ||||
| Air pressure | 3∼5kgt/㎠ | ||||
| Power source | AC 220V 1Ø 50∼60Hz / AC 380V 3Ø 50∼60Hz (AC 220V 3Ø 50∼60Hz) | ||||
| Product weight (kg) | 150 | 180 | 200 | 220 | |
| Safety devices |
|
||||
